940nm Spatial Optical Communication Mini Laser Diode TO-18

Product Categories

XINLAND LASER CO.,LTD

Contact Now

Name: 940nm Spatial Optical Communication Mini Laser Diode TO18
Brand: Xi'an Xinland International CO.,LTd
Price: 1 USD

Brand Name : Xi'an Xinland International CO.,LTd

Model Number : XL940LD-200

Certification : N/A

Place of Origin : China

MOQ : 100 Units

Price : Negotiated

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 5000 units each Month

Packaging Details : 100pcs per carton

Center Wavelength : 940nm

Spectral Width : 4.0nm

Power : 200mW

Package : TO-18

Beam Diameter : 5.6mm

Beam Divergence (FWHM) : 35°┴ x 8°//

Contact Now

940nm 200mw Spatial Optical Communication Mini Laser Diode TO-18 Package

Product Overview:

The product adopts the quantum well structure design, a variety of wide structure, 200mW power output.

It has the characteristics of small volume, high transmitting power, good reliability and long life.

Application:
Solid-state laser pump

Target designation

Stage lighting

Spatial Optical Communication

Technical Datasheet:

1. Maximum absolute rated parameters(Tc=25℃)

2. Main photoelectric property sheet(Tc=25℃)

3. The main characteristic curve

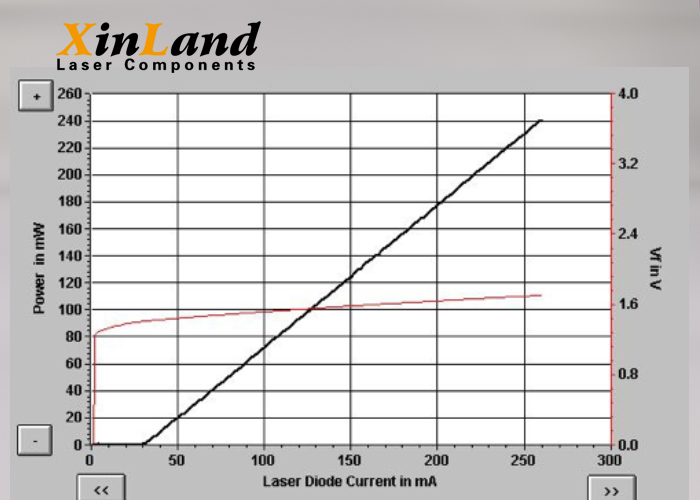

Figure 1:Power-current, voltage-current relationship

940nm Spatial Optical Communication Mini Laser Diode TO-18

4. Spetrum

940nm Spatial Optical Communication Mini Laser Diode TO-18
