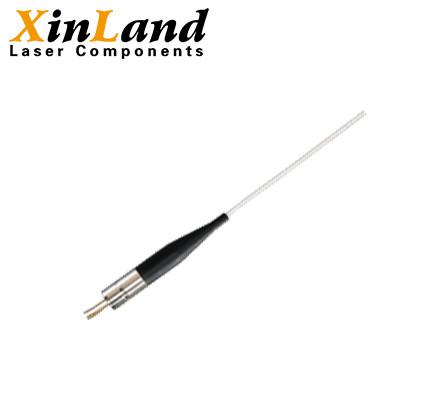

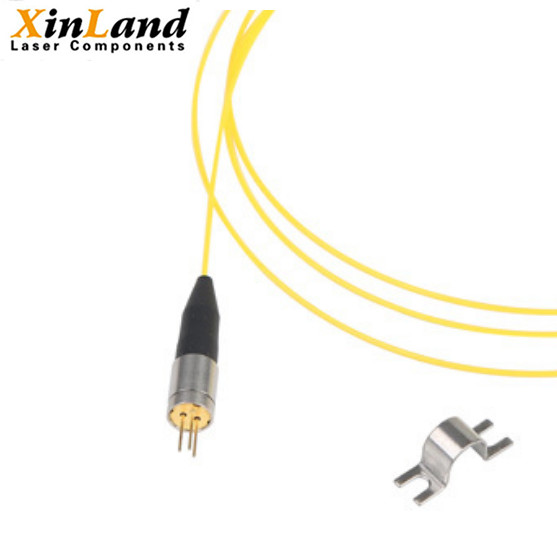

505nm 20mW/520nm 30mW Fiber Coupled Laser Diode Coaxial Package 520nm with PD

Name: 505nm 20mW520nm 30mW Fiber Coupled Laser Diode Coaxial Package 520nm with PD
Brand: XINLAND
Price: 1 USD

Brand Name : XINLAND

Model Number : XLP-505/XLP-520 Single Mode Fiber Coupled Laser Diode

Certification : CE

Place of Origin : Xi'an Shaanxi

MOQ : 100pcs

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Wavelength : 505nm/520nm

Fiber Type : SMF-28

Fiber Core : 9um

Package Type : Coaxial

Connector : FC/SMA

Contact Now

505nm 20mW/520nm 30mW Fiber Coupled Laser Diode Coaxial Package 520nm with PD
Product Details:

Model Number: XLP-505-020m-9/XLP-520-030m-9-PD

Type: Fiber Coupled Laser Diode

Wavelength: 505nm, 520nm with PD

Fiber Type: SMF-28

Fiber Core: 9um

Package Type: Coaxial

Connector: FC/SMA

Product Specifications:

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
505nm	XLP-505-020m-9	20mW	SMF-28	9um	Coaxial	FC/SMA	×	×
520nm	XLP-520-030m-9-PD	30mW	SMF-28	9um	Coaxial	FC/SMA	√	×

During the use of the Fiber Coupled Laser Diode, ensure that the die is not contaminated and prevent mechanical damage.
The optical fiber cannot be bent at a large angle, and the bending diameter should be greater than 300 times the diameter of the optical fiber.
Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
