1270nm-1650nm 9um Infrared Fiber Coupled Laser Diode with PD Coaxial Package 8-Pin with TEC Package

Name: 1270nm1650nm 9um Infrared Fiber Coupled Laser Diode with PD Coaxial Package 8Pin with TEC Package
Brand: XINLAND
Price: 1 USD

Buy cheap 1270nm-1650nm 9um Infrared Fiber Coupled Laser Diode with PD Coaxial Package 8-Pin with TEC Package product

Brand Name : XINLAND

Model Number : XLP-1270~XLP-1650 Single Mode Fiber Coupled Laser Diode

Certification : CE

Place of Origin : Xi'an Shaanxi

MOQ : 100pcs

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Wavelength : 1270nm-1650nm

Fiber Type : SMF-28

Fiber Core : 9um

Package Type : Coaxial/8-Pin

Connector : FC/SMA

Contact Now

1270nm-1650nm Infrared Fiber Coupled Laser Diode with PD Coaxial Package and 8-Pin with TEC Package
Product Details:

Model Number: XLP-1270~XLP-1650

Type: Fiber Coupled Laser Diode

Wavelength: 1270nm-1650nm with PD

Fiber Type: SMF-28

Fiber Core: 9um

Package Type: Coaxial

Connector: FC/SMA

Product Specifications:

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
1270nm	XLP-1270-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1270-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1270-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1290nm	XLP-1290-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1290-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1290-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1310nm	XLP-1310-002m-9-FP	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1310-003m-9-DFB	3mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1310-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1310-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
	XLP-1310-010m-9-DFB	10mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1310-010m-9-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/SMA	√	√
	XLP-1310-015m-9-DFB	15mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1310-015m-9-H8-T-DFB	15mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1330nm	XLP-1330-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1330-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1330-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1350nm	XLP-1350-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1350-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1350-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1370nm	XLP-1370-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1370-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1370-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1390nm	XLP-1390-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1390-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1390-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1410nm	XLP-1410-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1410-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1410-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1430nm	XLP-1430-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1430-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1430-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1450nm	XLP-1450-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1450-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1450-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1470nm	XLP-1470-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1470-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1470-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1490nm	XLP-1490-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1490-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1490-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1510nm	XLP-1510-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1510-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1510-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1530nm	XLP-1530-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1530-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1530-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1550nm	XLP-1550-002m-9-FP	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1550-003m-9-DFB	3mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1550-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1550-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
	XLP-1550-010m-9-DFB	10mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1550-010m-9-H8-T-DFB	10mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1570nm	XLP-1570-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1570-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1570-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1590nm	XLP-1590-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1590-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1590-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1610nm	XLP-1610-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1610-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1610-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1625nm	XLP-1625-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1625-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1625-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√
1650nm	XLP-1650-002m-9-DFB	2mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLP-1650-005m-9-DFB	5mW	SMF-28	9um	Coaxial	FC/SMA	√	×
	XLX-1650-005m-9-H8-T-DFB	5mW	SMF-28	9um	8-Pin	FC/SMA	√	√

1270nm-1650nm 9um Infrared Fiber Coupled Laser Diode with PD Coaxial Package 8-Pin with TEC Package

OPERATING NOTES
◆Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260°C and time shorter than 10 second.
◆Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
◆Use constant current power supply to avoid surge current during operation.
◆Laser diode must be used according to the specifications.
◆Laser diode must work with good cooling.

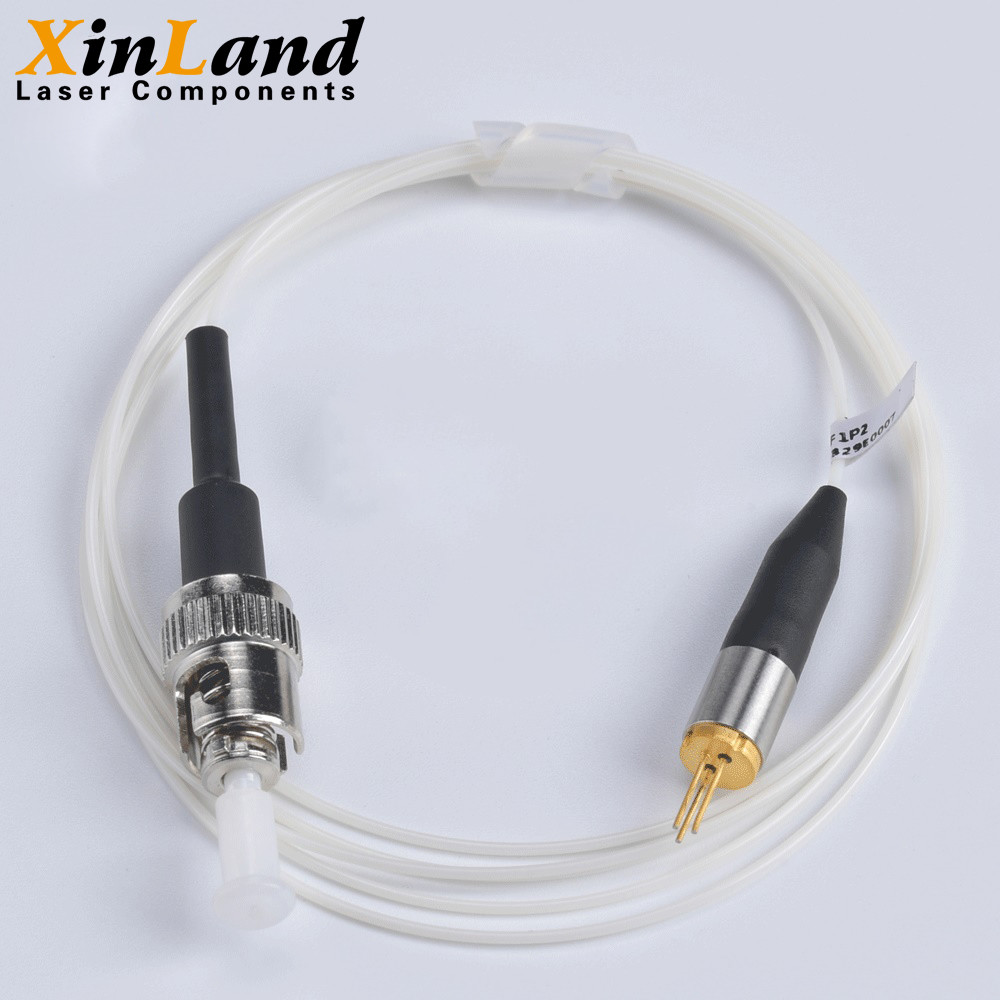

1270nm-1650nm 9um Infrared Fiber Coupled Laser Diode with PD Coaxial Package 8-Pin with TEC Package Images
