505nm 5-20mW 520nm 1-25mW Fiber Coupled Laser Diode Modules Lighting PD TEC Package Optional

Name: 505nm 520mW 520nm 125mW Fiber Coupled Laser Diode Modules Lighting PD TEC Package Optional
Brand: XINLAND
Price: 1 USD

Buy cheap 505nm 5-20mW 520nm 1-25mW Fiber Coupled Laser Diode Modules Lighting PD TEC Package Optional product

Brand Name : XINLAND

Model Number : XLP-505/XLP-520 Single Mode Fiber Coupled Laser Diode

Certification : CE

Place of Origin : Xi'an Shaanxi

MOQ : 100pcs

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Wavelength : 505nm/520nm

Package Type : Coaxial/8-Pin

Connector : FC/SMA

Contact Now

505nm 5-20mW 520nm 1-25mW Fiber Coupled Laser Diode Modules Lighting PD TEC Package Optional

Product Details:

Model Number: XLP-505/XLP-520 (PD,TEC Optional)

Type: Fiber Coupled Laser Diode

Wavelength: 505nm/520nm

Fiber Type: SMF

Fiber Core: 3um

Package Type: Coaxial/8-Pin

Connector: FC/SMA

Product Specifications:

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
505nm	XLP-505-005m-4-PD	5mW	SMF	3um	Coaxial	FC/SMA	√	×
	XLX-505-005m-4-H8-T-PD	5mW	SMF	3um	8-Pin	FC/SMA	√	√
	XLP-505-010m-4	10mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-505-010m-4-H8-T	10mW	SMF	3um	8-Pin	FC/SMA	○	√
	XLP-505-020m-4	20mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-505-020m-4-H8-T	20mW	SMF	3um	8-Pin	FC/SMA	○	√
520nm	XLP-520-001m-4-PD	1mW	SMF	3um	Coaxial	FC/SMA	√	×
	XLX-520-001m-4-H8-T-PD	1mW	SMF	3um	8-Pin	FC/SMA	√	√
	XLP-520-010m-4	10mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-520-010m-4-H8-T	10mW	SMF	3um	8-Pin	FC/SMA	○	√
	XLP-520-010m-4-PD	10mW	SMF	3um	Coaxial	FC/SMA	√	×
	XLX-520-010m-4-H8-T-PD	10mW	SMF	3um	8-Pin	FC/SMA	√	√
	XLP-520-020m-4	20mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-520-020m-4-H8-T	20mW	SMF	3um	8-Pin	FC/SMA	○	√
	XLP-520-020m-4-PD	20mW	SMF	3um	Coaxial	FC/SMA	√	×
	XLX-520-020m-4-H8-T-PD	20mW	SMF	3um	8-Pin	FC/SMA	√	√
	XLP-520-025m-4	25mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-520-025m-4-H8-T	25mW	SMF	3um	8-Pin	FC/SMA	○	√
	XLP-520-025m-4-PD	25mW	SMF	3um	Coaxial	FC/SMA	√	×
	XLX-520-025m-4-H8-T-PD	25mW	SMF	3um	8-Pin	FC/SMA	√	√

OPERATING NOTES
◆Avoid eye and skin exposure to direct radiation during operation.
◆ ESD precautions must be taken during storage, transportation and operation.
Short-circuit is required between pins during storage and transportation.
◆Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260°C and time shorter than 10 second.

505nm 5-20mW 520nm 1-25mW Fiber Coupled Laser Diode Modules Lighting PD TEC Package Optional

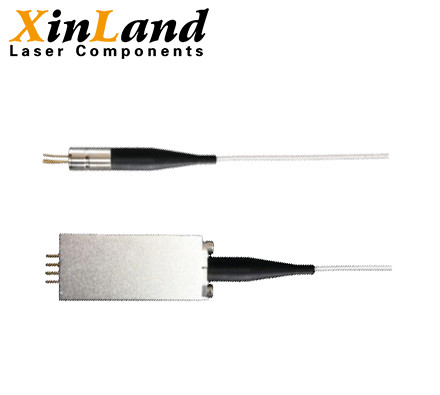

505nm 5-20mW 520nm 1-25mW Fiber Coupled Laser Diode Modules Lighting PD TEC Package Optional Images
