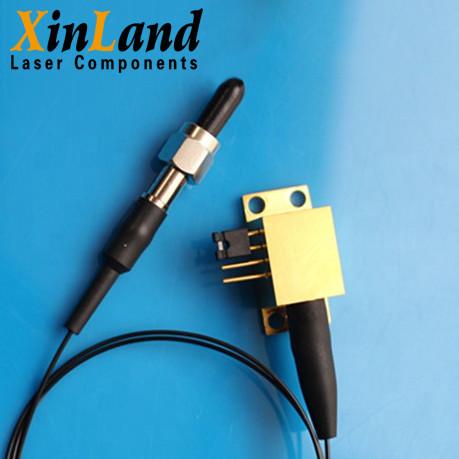

High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type

Name: High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type
Brand: XINLAND
Price: 1 USD

Buy cheap High Brightness 635nm 650nm Red Fiber Laser Diodes Medical Five Package Type product

Brand Name : XINLAND

Model Number : XLP-635~XLX-650 Multi Mode Fiber Coupled Laser Diode

Certification : CE

Place of Origin : Xi'an Shaanxi

MOQ : 100pcs

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Wavelength : 635nm 650nm

Fiber Type : MMF

Fiber Core : 50-200um

Package Type : Coaxial/8-Pin/4-Pin/14-Pin/9-Pin

Connector : FC

Contact Now

High Brightness Red Laser 635nm 650nm Fiber Laser Diodes Medical Diode Laser Five Package Type

Product Details:

Type: Fiber Coupled Laser Diode

Wavelength: 635nm 650nm

Fiber Type: MMF

Fiber Core: 50-200um

Package Type: Coaxial/8-Pin/4-Pin/14-Pin/9-Pin

Connector: FC

Product Specifications:

Wavelength	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
635nm	5mW	MMF	105um	Coaxial	FC	√	×
	100-300mw/1W	MMF	105um	Coaxial	FC	×	×
	100-300mw	MMF	105um	8-Pin	FC	○	√
	100mW	MMF	105um	8-Pin	FC	√	√
	400mW	MMF	105um	4-Pin	FC	○	×
	400mW	MMF	105um	14-Pin	FC	√	√
	800mW	MMF	50um	Coaxial	FC	×	×
	800mW	MMF	50um	9-Pin	FC	√	√
	1W	MMF	105um	9-Pin	FC	√	√
	1.8W	MMF	200um	Coaxial	FC	×	×
	1.8W	MMF	200um	9-Pin	FC	√	√
650nm	30-150mW	MMF	105um	Coaxial	FC	√	×
	30-100mW	MMF	105um	8-Pin	FC	√	√
	100/150mW	MMF	105um	8-Pin	FC	○	√
	800mw	MMF	105um	4-Pin	FC	○	×
	800mw	MMF	105um	9-Pin	FC	√	√

Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
Multi-package form of single-mode/multi-mode fiber output can be used: 2-Pin/4-Pin/8-Pin/9-Pin/14-Pin/Coaxial/HHL-01/P4/P5.

Main product wavelengths: 405nm, 445nm, 488nm, 505nm, 520nm, 525nm, 635nm, 658nm, 680nm, 785nm, 808nm, 830nm, 850nm, 860nm, 880nm, 915nm, 940nm, 980nm, 1064nm, 1210nm,1280nm,1310nm, 1330nm, 1450nm, 1470nm, 1490nm, 1530nm, 1550nm, 1720nm, 1900nm, 1920nm.
Laser Color: UV, Blue-violet, Blue, Green, Orange-red,Red, and Infrared light.
