Multi Mode 1210nm-1330nm 1.5W IR Laser Diode FAC Optional For IR Laser Module

Brand Name : XINLAND

Model Number : XLD-1210nm-1330nm Laser Diode

Certification : CE

Place of Origin : Xi'an Shaanxi

MOQ : 100pcs

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Wavelength : 1210nm-1330nm

Output Power : 1.5W

Package Type : TO3/C-Mount/E-Mount/H-Mount

FAC : Optional

Mode Type : Multimode

Contact Now

IR Laser Diode 1210nm-1330nm 1.5W FAC Optional Multimode Laser Diode for IR Laser Module
Laser Diode Widely Used​​:

  • Laser marking technology is one of the largest application areas of laser processing. Laser marking is a marking method that uses high-energy-density lasers to locally irradiate the workpiece to vaporize or change the color of the surface material, thereby leaving a permanent mark.
  • Laser marking can produce a variety of characters, symbols and patterns, etc., and the size of the characters can range from millimeters to micrometers, which is of special significance to the anti-counterfeiting of products. All-solid-state ultraviolet band laser marking is a new technology developed in recent years. It is especially suitable for metal marking and can achieve sub-micron marking. It has been widely used in the microelectronics industry and biological engineering.

Product Specifications:

Wavelength Part Number Output Power Mode Type Laser Type Package PD FAC
1210nm-1330nm XLD-1210-1500m-C 1.5W MM FP C-mount × ○
XLD-1210-1500m-3 1.5W MM FP TO3 × ○
XLD-1210-1500m-E 1.5W MM FP E-mount × ○
XLD-1210-1500m-H 1.5W MM FP H-mount × ○
XLD-1280-1500m-C 1.5W MM FP C-mount × ○
XLD-1280-1500m-3 1.5W MM FP TO3 × ○
XLD-1280-1500m-E 1.5W MM FP E-mount × ○
XLD-1280-1500m-H 1.5W MM FP H-mount × ○
XLD-1310-1500m-C 1.5W MM FP C-mount × ○
XLD-1310-1500m-3 1.5W MM FP TO3 × ○
XLD-1310-1500m-E 1.5W MM FP E-mount × ○
XLD-1310-1500m-H 1.5W MM FP H-mount × ○
XLD-1330-1500m-C 1.5W MM FP C-mount × ○
XLD-1330-1500m-3 1.5W MM FP TO3 × ○
XLD-1330-1500m-E 1.5W MM FP E-mount × ○
XLD-1330-1500m-H 1.5W MM FP H-mount × ○

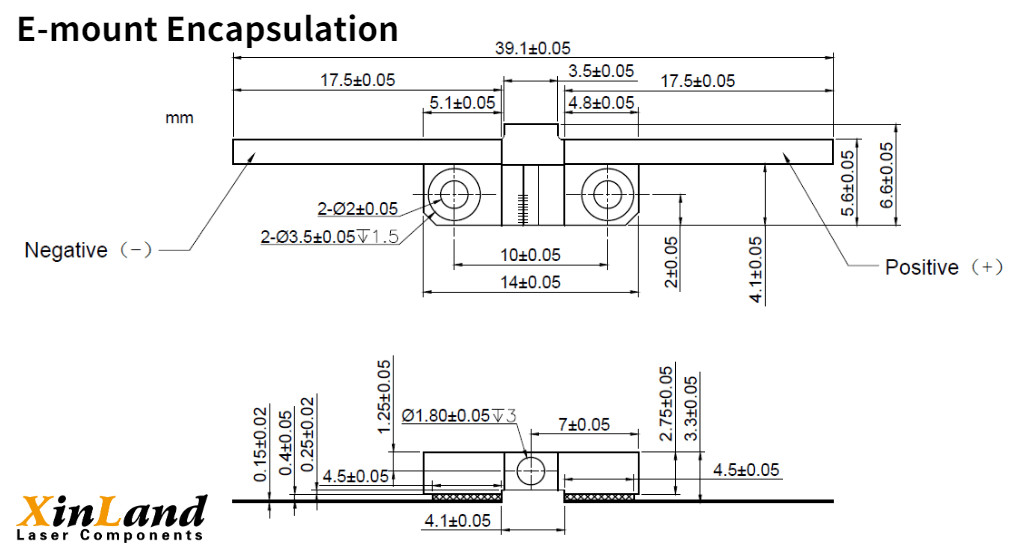

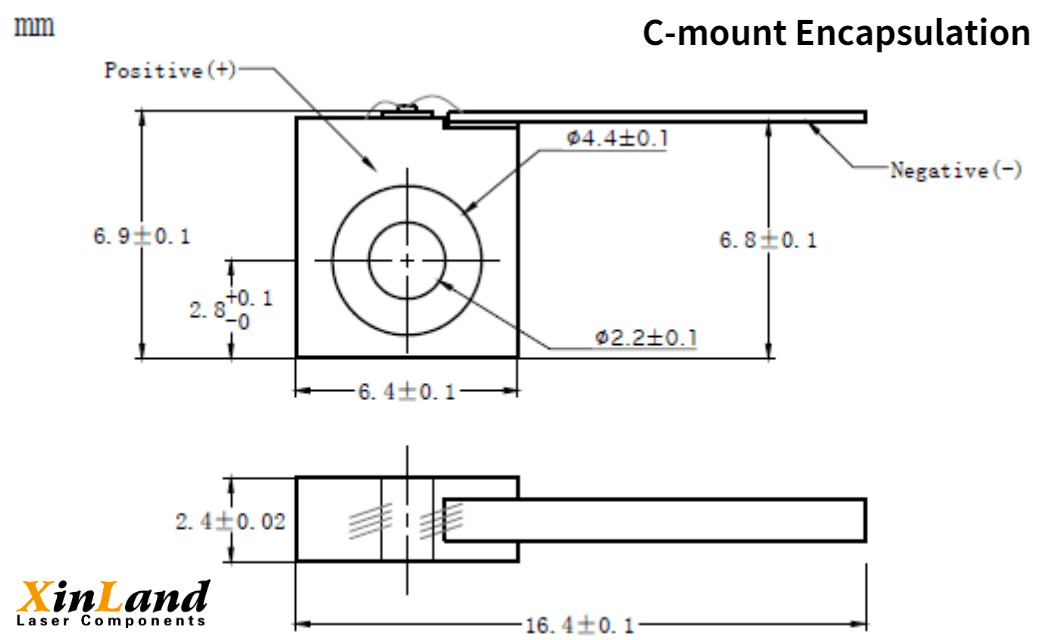

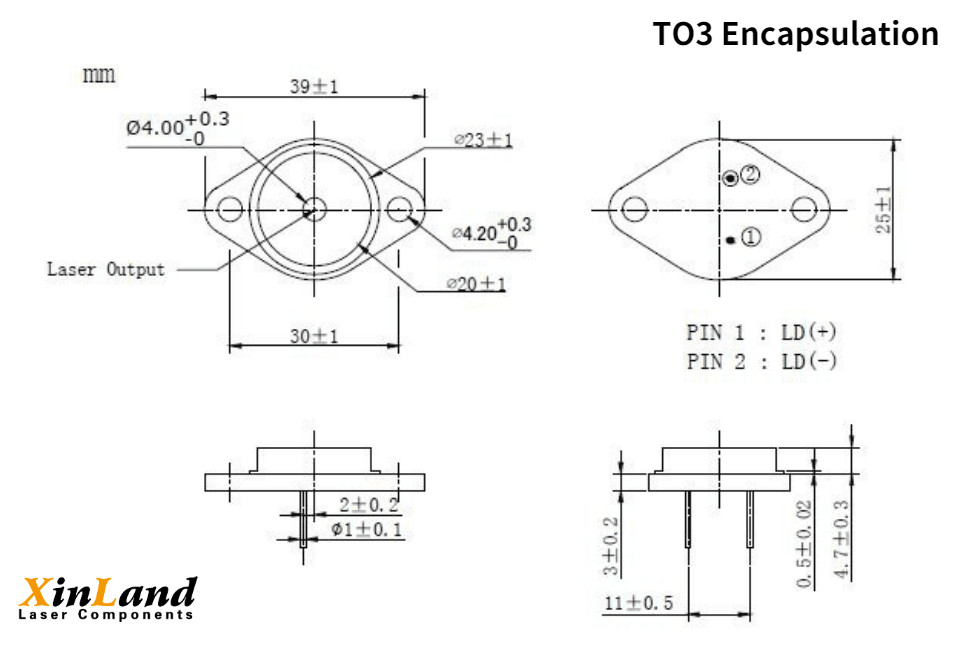

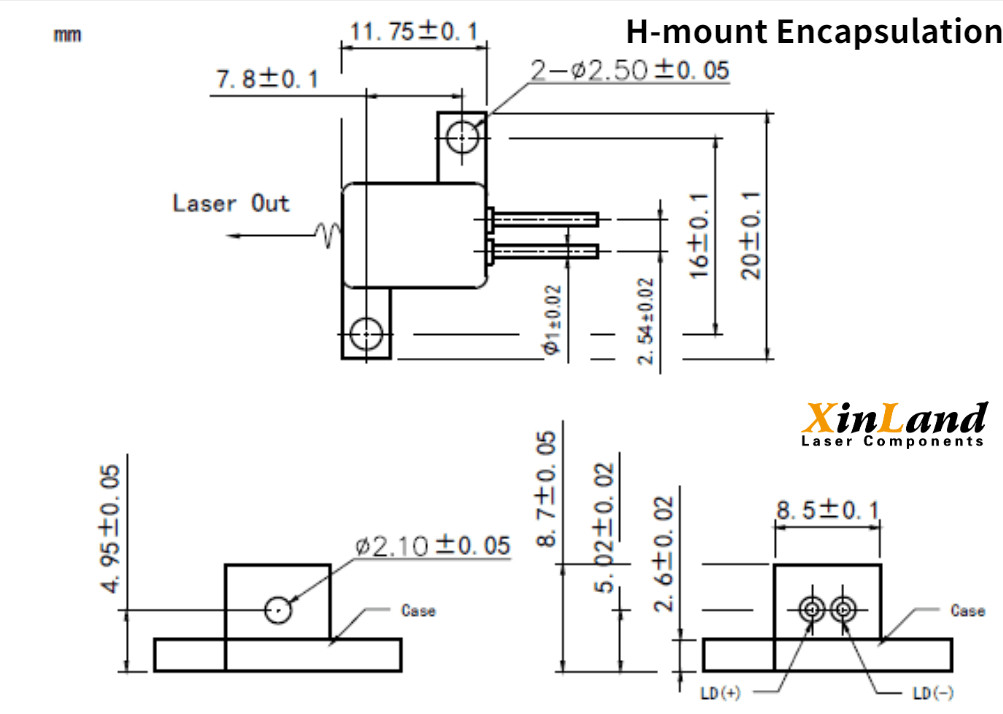

Package Type:

Multi Mode 1210nm-1330nm 1.5W IR Laser Diode FAC Optional For IR Laser ModuleMulti Mode 1210nm-1330nm 1.5W IR Laser Diode FAC Optional For IR Laser Module

Multi Mode 1210nm-1330nm 1.5W IR Laser Diode FAC Optional For IR Laser Module

Multi Mode 1210nm-1330nm 1.5W IR Laser Diode FAC Optional For IR Laser Module
