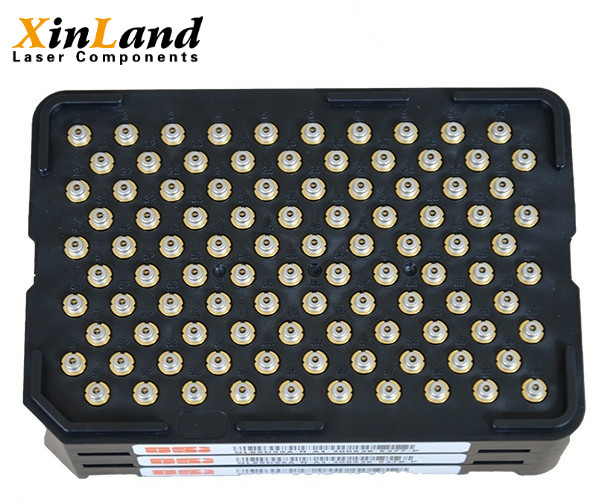

850nm 50mW Mini Laser Diode With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole

Product Categories
XINLAND LASER CO.,LTD
Contact Now

850nm 50mW Mini Laser Diode With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole

Brand Name : XINLAND

Model Number : LD-850-050m-1-PD Laser Diode

Certification : CE

Place of Origin : Xi'an Shaanxi China

MOQ : 100pcs

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Type : Laser Diode

Sealed : TO18

Wavelength : 850nm

Output Power : 50mW

Color : Infrared

Package Type : Through Hole

Contact Now

Mini Laser Diode 850nm 50mW With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole



Product Details​:

Model Number: XLD-850-050m-1-PD

Type: Infrared Laser Diode

Power: 50mW

Wavelength: 850nm

Package Type: TO18

Laser: Infrared Laser

Normal camera shooting effect:

850nm 50mW Mini Laser Diode With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole

Product Specifications:

Wavelength Part Number Output Power Mode Type Laser Type Package PD FAC
850nm XLD-850-050m-1-PD 50mW SM FP TO18 √ ×

Tips:

The methods that can be used when the working parameters exceed the maximum allowable value are as follows:
(1) Drive the laser diode with a DC constant current source.
(2) Connect a current-limiting resistor in series with the laser diode circuit and a bypass capacitor in parallel.
(3) As the temperature of the laser diode increases, the current value flowing through it will increase, so necessary heat dissipation measures must be taken to ensure that the device works within a certain temperature range.
(4) In order to avoid the breakdown and damage of the laser diode due to the excessive reverse voltage, fast silicon diodes can be connected in anti-parallel at both ends of the laser diode.



850nm 50mW Mini Laser Diode With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service


Product Tags:

850nm 50mW Mini Laser Diode



TO18 5.6mm Mini Laser Diode



850nm 50mW Infrared Laser Diode
