Shield Screening VLT 73% Yag 1064nm Laser Safety Window

Product Categories
XINLAND LASER CO.,LTD
Contact Now

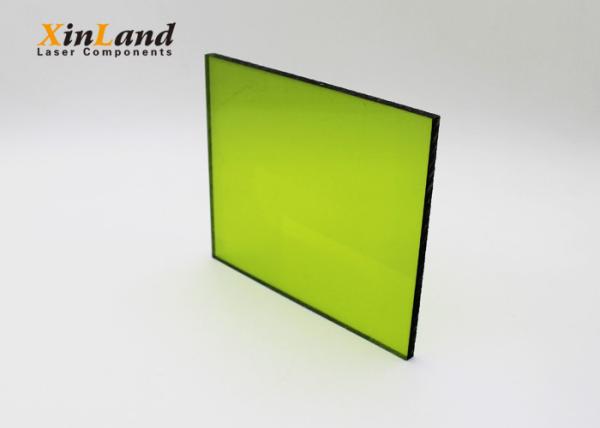

Shield Screening VLT 73% Yag 1064nm Laser Safety Window

Brand Name : xinland

Certification : CE

Place of Origin : China

MOQ : 10pcs

Price : Negotiated

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs per months

Delivery Time : 5-8 work days

Packaging Details : 10pc carton

Product Name : YAG 1064nm Laser Shield Screening Working Place Laser Window

Material : pmma

Dimension : 24x36inches,24x24inches ,48x96inches

Standards : ansi z136.1 CE EN12254

Contact Now

YAG 1064nm Laser Shield Screening Working Place Laser Window



Protection Wavelength: 190~450nm, 800~1100nm, OD6+

Typical:980nm,1064nm, 1070nm

VLT:55%



FEATURES:

Mainly for Infrared 1064nm,1070nm with high optical density of ,6+,8+.



APPLICATION:

Safety window for laser processing equipment.

YAG laser 1064nm, fiber laser 1070nm and 1080nm.

For example, Laser engraving, Laser cutting.




Shield Screening VLT 73% Yag 1064nm Laser Safety WindowShield Screening VLT 73% Yag 1064nm Laser Safety Window







Catalog of YAG 1064nm Laser Shield Screening Working Place Laser Window



Series NO. Protection Wavelength Dimension(mm) OD vlt
XL1PW5D5T 190~550nm 1280*1000*5mm 5+ 15%
XL2PW4D5T 580nm~750nm 1280*1000*5mm 5+ 40%
XL3PW4D5T 800~1100nm 1280*1000*5mm 4+ 73%
XL3PW6D5T 800~1100nm 1280*1000*5mm 6+ 60%
XL3PW8D5T 800~1100NM 1280*1000*5mm 8+ 42%
XL3PW4GD5T 190~540nm & 800~1100nm 1280*1000*5mm 4+ 25%
XL4PW4D5T 190~450nm & 800~1700nm 1280*1000*5mm 4+ 35%
XL5PW4D5T 190~420nm & 860~1300nm 1280*1000*5mm 4+ 28%
XL6PW4D3T 1064nm&10600nm 1200*1000*3.3mm 4+ 40%
XL6PW5D5T 1064nm&10600nm 1200*1000*5mm 5+ 40%
XL6PW6D5T 1064nm&10600nm 1200*1000*5mm 6+ 30%
XL7PW4D5T 10600nm 1200*1000*5mm 6+ 90%
XL8PW4D6T 860-960nm ,960-2000nm,1050-1760nm 1200*1000*5mm 6+ 53%
