TO-18 5.6mm LD6310 635nm 10mw Mini Laser Diode

Name: TO18 56mm LD6310 635nm 10mw Mini Laser Diode
Brand: XINLAND
Price: 1 USD

Buy cheap TO-18 5.6mm LD6310 635nm 10mw Mini Laser Diode product

Model Number : 635nm-10mw

Brand Name : XINLAND

Certification : CE

Place of Origin : Xi'an Shaanxi China

MOQ : 100pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Type : Laser Diode

Package Type:Package Type : Through Hole

po(mW) max : 700MW

Top(C) : -10-40

Ith(mA) : 110mA

Contact Now

TO-18(Ø5.6mm) LD6310 Mini Laser Diode Technical 635nm-10mw

Quick Details

Place of Origin:Xi’an Shaanxi China

Brand Name:XINLAND

Model Number:635

Type:Laser Diode

Package Type:Through Hole

po(mW) max:700MW

Top(C):-10-40

Ith(mA):110mA

Iop(mA):810mA

Vop(v):2.46V

Supply Ability

Supply Ability:10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

Electrostatic Bag

Port:

Xi’an Shaanxi

Lead Time :

Quantity(Pieces)	1 - 500	>500
Est. Time(days)	5	To be negotiated

● Features

-Low Operating Current

-High Efficiency

-High reliability

-High Precision Package

-Visible Light Output : λp=635nm

-Package Type : TO-18(Ø5.6mm)

-Built-in Photo Diode for Monitoring Laser Diode

● Absolute Maximum Rating at TC=25℃

Items	Symbol	Rating	Unit
Optical Output Power	P_O	12	mW
LD Reverse Voltage	V_LDR	2	V
PD Reverse Voltage	V_PDR	30	V
PD Forward Current	I_PDF	10	mA
Operation Temperature	T_OP	-10 ~ +40	℃
Storage Temperature	Tstg	-40 ~ +85	℃

● Electrical and Optical Characteristics at TC=25℃

Items	Symbol	Min	Typ.	Max	Unit	Condition
Lasing Wavelength	λp	630	635	640	nm	P_O=10mW
Threshold Current	Ith	-	30	35	mA	-
Operating Current	Iop	-	55	65	mA	P_O=10mW
Slope Efficiency	η	0.25	0.5	0.65	mW/mA	P_O=5-10mW
Monitor Current	Im	0.03	0.12	0.5	mA	P_O=10mW,V_PDR =5V
Operating Voltage	Vop	-	2.2	2.5	V	P_O=10mW
Parallel divergence angle	θ‖	6	7.5	11	deg
Perpendicular divergence angle	θ⊥	30	33	40	deg
Parallel FFP deviation angle	△θ‖	-	-	±2	deg
Perpendicular FFP deviation angle	△θ⊥	-	-	±2	deg
Emission Point Accuracy	△X,△Y,△Z	-	-	±80	µm

LT-LD6310 Laser Diode Technical Data

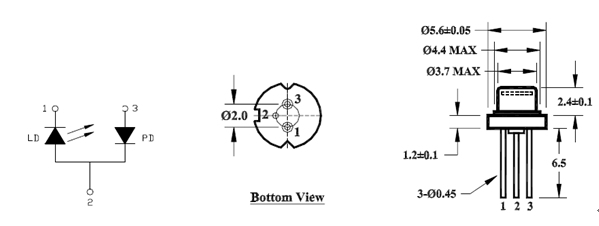

● Internal Ciruit & Outline Dimensions (unit:mm)

TO-18 5.6mm LD6310 635nm 10mw Mini Laser Diode
