808nm Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal

Product Categories
XINLAND LASER CO.,LTD
Contact Now

808nm Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal

Brand Name : XINLAND

Model Number : LD0808-C012-0525CA

Certification : CE

Place of Origin : China

MOQ : 100pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Dozen/Dozens per Day

Delivery Time : 7 days

Packaging Details : 1pcs/polybag,10pcs/inner box,100pcs/ctn

Storage Temperature : -30 to +70C

Case Operating Temperature : 10 to 50C

Relative Humidity, non-condensed : 5% to 85%

Reverse Power Supply Voltage : 5.7V

Maximum continuous forward current : 5.5A

ESD Exposure (Human Body Model) : 500V1

Contact Now



Specs.:

Wavelength: 830nm(±5nm)

Output power:1000mw

Body Size: 25x67mm

Vol: 3.6~4.2V

Current: 1.1A

Storage Temperature: 0ºC~50ºC

Operating Temperature:0ºC~40ºC

Life time: 8000hours



Product features:
• 808nm Multimode Fiber coupled
• High Efficiency, 50%@25°C
• SMA905 connector
• Robust packaging



Applications:
3D Imaging
Laser Illumincation
Medical applications
Military Application



808nm~810nm 4W~4.5W Fiber Coupled Diode Laser Module with 105um Multi-mode Fiber | 808nm 4W Diode Laser Module for Medical |2-Pin Package| 105um Fiber Core| High Power LD XL808-004-M-H2

Parameter Rating
Storage Temperature -30 to +70°C
Case Operating Temperature 10 to 50°C
Relative Humidity, non-condensed 5% to 85%
Reverse Power Supply Voltage 5.7V
Maximum continuous forward current 5.5A
ESD Exposure (Human Body Model) 500V1



Notice

Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operations section for extended periods of time may affect reliability.

The inherent design of this component causes it to be sensitive to electrostatic discharge (ESD). To prevent ESD-induced damage and/or degradation to equipment, take normal ESD precautions when handling this product



Electro-Optical Characteristics (Top 25 deg C unless otherwise stated)

Laser Characteristics Symbol Minimum Typical Maximum
Laser Output Power (CW) Po 12W - -
Centroid Wavelength l - 808nm -
Operating Current Iop - 5.2A -
Threshold Current Ith - 0.8A -
Forward Voltage Vf - 5.7V -
Spectral Width (FWHM) Dl - 5nm -
Test Temperature (Case) TCase - 25OC -
Conversion Efficiency % - 46 -
Fiber Characteristics
Fiber Core Diameter dCore - 200um -
Fiber Cladding Diameter dClad - 220um -
Buffer Diameter dBuf - 320um -
Numerical Aperture NA - 0.22 -
Fiber Length L 0.9m 1m -
Bend Radius RBend 60mm   1.1m



Technical Parameter

  Min. Type Max.
Central Wavelength (@25 deg.C) +-3nm 808nm +-10nm
Spectral Width (FWHM) ----- 2.5nm -----
Output power ------ 1w ------
Recommended Operating Temperature 25 Deg C
Temperature coefficient of wavelength ------- 0.3nm/deg.c -------
Slope Efficiency -------- 1.1w/A ------
Threshold Current (Typ.) -------- 0.2A ------
Operating Current (Typ.) -------- 1.2 A -------
Operating Voltage -------- 2.2V --------
Package Style TO-5

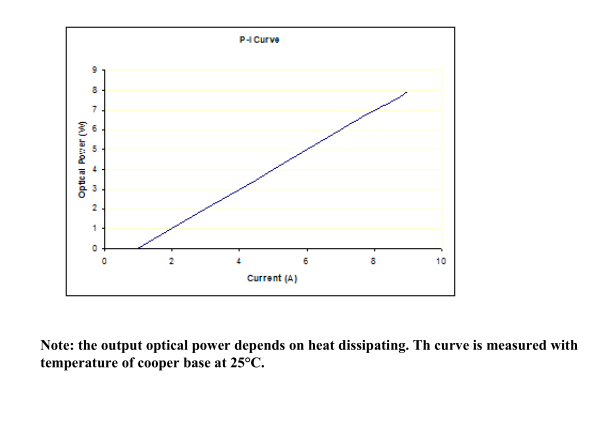

808nm Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal

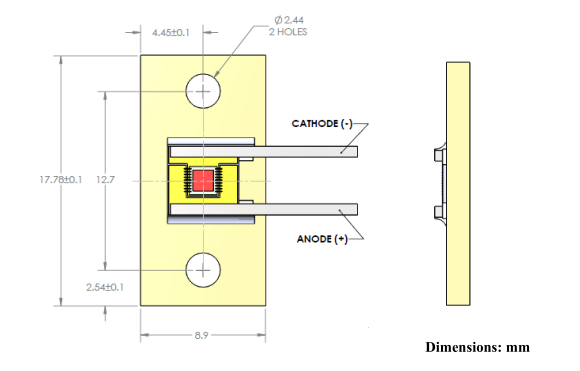

808nm Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal

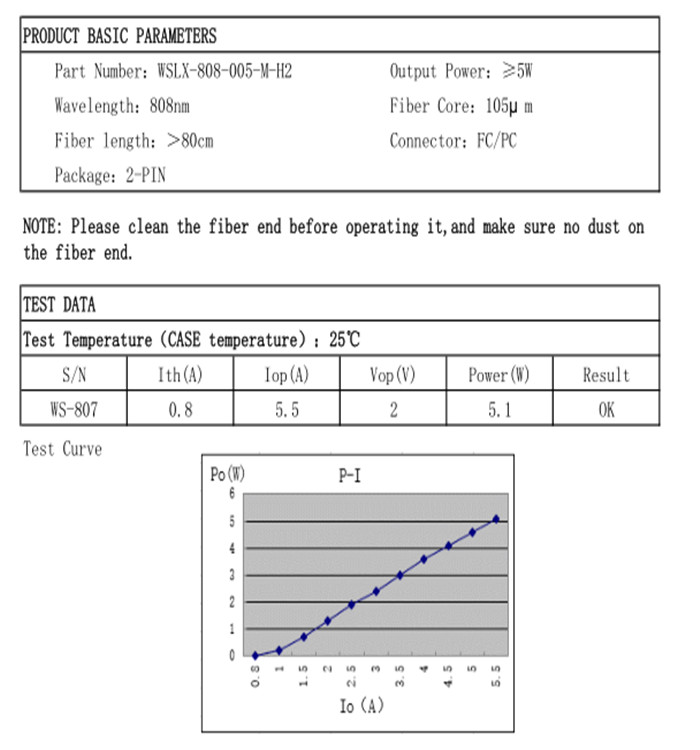

808nm Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal

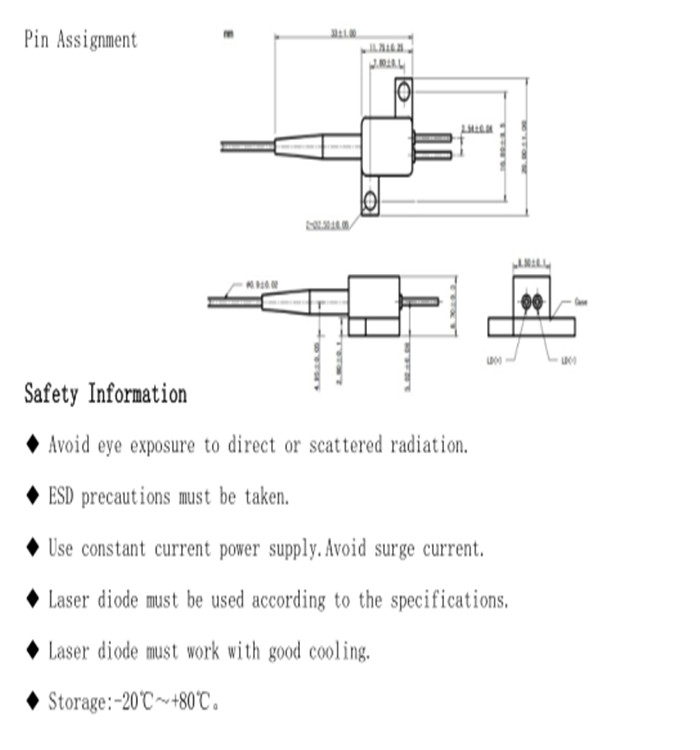

808nm Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal
