XLD780005M7J Mini Laser Diode 780nm 5mW 70℃ TO-18 Laser Diodes
Quick Details
Application:Laser rangefinder, confocal microscope
Place of Origin:China
Brand Name:XINLAND
Type:Laser Diode
Package Type:Surface Mount
Max. Forward Voltage:-
Max. Reverse Voltage:-
Max. Forward Current:-
Max. Reverse Current:-
Supply Ability
Supply Ability:15000 Piece/Pieces per Week
Packaging & Delivery
Packaging DetailsASD-box
Port:Xi’an Shaanxi
Lead Time :
| Quantity(Pieces) | 1 - 200 | >200 |
| Est. Time(days) | 3 | To be negotiated |
■Specifications
Wavelength: 650nm
Light Output: 5mW CW

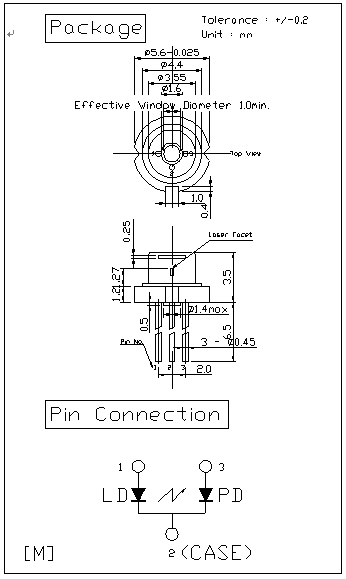

Package Type: TO-18(Φ5.6mm)
High Output Power: 230mW (Pulse
High Efficiency: 0.95W/A (typ.)
Visible Light: 658nm (typ.)
Low Aspect Ratio ( θ ⊥ / θ //): 1.8 (typ.)
Low Astigmatic Distance: 1µm (typ.)
■Absolute Maximum Ratings (Tc=25℃)
| Parameter | Symbols | Ratings | Units |
| Optical Output | Po(CW) | 5 | mW |
| Reverse Voltage | Laser | Vr | 2 | V |
| PIN PD | Vr (PIN) | 30 | V |
| Operating Temperature | Top | -10 ~ +70 | ℃ |
| Storage Temperature | Tstg | -40 ~ +80 | ℃ |
■Electrical and optical Characteristics(Tc=25℃)
| Parameter | Symbols | Conditions | Min | Typ | Max | Units |
| Threshold Current | Ith | - | 25 | 35 | 40 | mA |
| Operating Current | Iop | Po=5mW | 40 | 45 | 50 | mA |
| Operating Voltage | Vop | Po=5mW | 1.7 | 1.9 | 2.0 | Volts |
| Differential efficiency | η | - | 0.3 | 0.5 | 0.8 | mW/mA |
| Monitor Current | Im | Po=5mW | - | 0.2 | - | mA |
| Beam Divergence (FWHM) | Parallel | θ‖ | Po=5mW | - | 11 | - | deg |
| Perpendicular | θ⊥ | Po=5mW | - | 37 | - | deg |
| Parallel Deviation Angle | △θ‖ | Po=5mW | -2 | - | 2 | deg |
| Perpendicular Deviation Angle | △θ⊥ | Po=5mW | -2 | - | 2 | deg |
| Emission Point Accuracy | △X,△Y,△Z | Po=5mW | -80 | - | 80 | um |
| Lasing Wavelength | λp | Po=5mW | 775 | 785 | 795 | nm |
